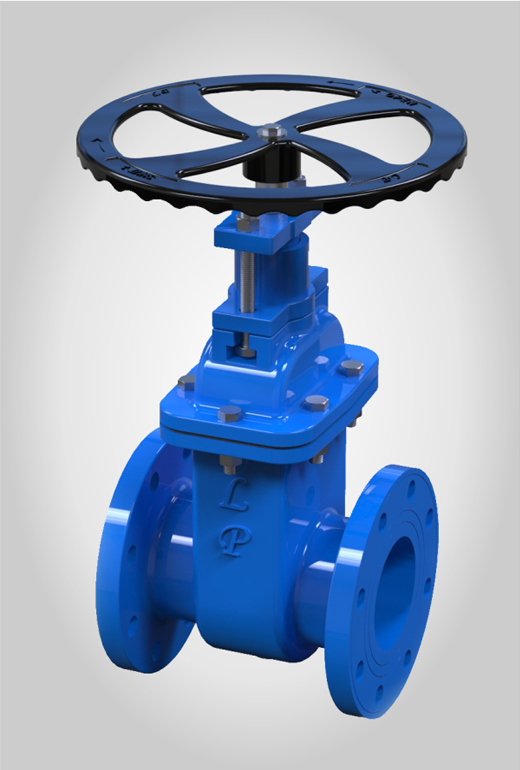

Sluice Valve Discription

Ports: Single
Body Style: Non Rising
Size Range: DN.50 - 600MM
Temperature Range: < 80 °C
Pressure Ratings: PN1.0, PN1.6
Steam Rating: N/A
End Connections: Flanged

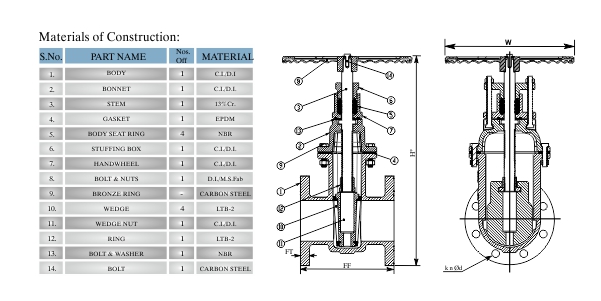

Body Materials: C.I/D.I
Seat/Gasket Materials: NBR-Rubber


A gate valve, also known as a sluice valve, is a valve which opens by lifting a round gate/wedge out of the path of the fluid. The distinct feature of a Sluice valve is the sealing surfaces between the gate and seats are planar, so Sluice valves are often used when a straight-line flow of fluid and minimum restriction is desired. The gate faces can be parallel, but are most commonly wedge-shaped.

Specification & Features::

. Combination of excellent design features of reputed overseas valve brands. . . Rigid and sturdy design with minimum loss of head across the valve. . Perfect interchangeability of components. . Assured parallelism between side flanges. . Assured equal taper between wedge faces. . Perfect machining and pressing of body wedge rings. . Excellent finish on spindle thread resulting in low friction and smooth operation of valves. . Long service life and leak-tightness even after thousands of open/ close cycle.

Applications :

Flanged Ends, Bolted Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated.

Design Standard IS:

14846 PN1.0 &PN1.6.

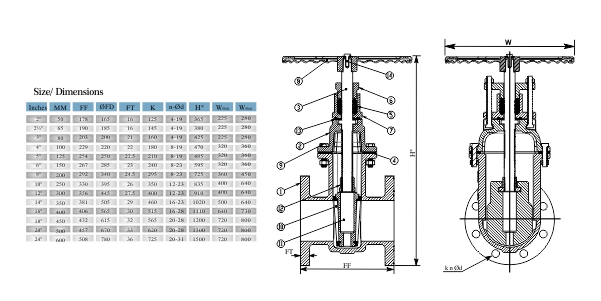

Dimension Details
