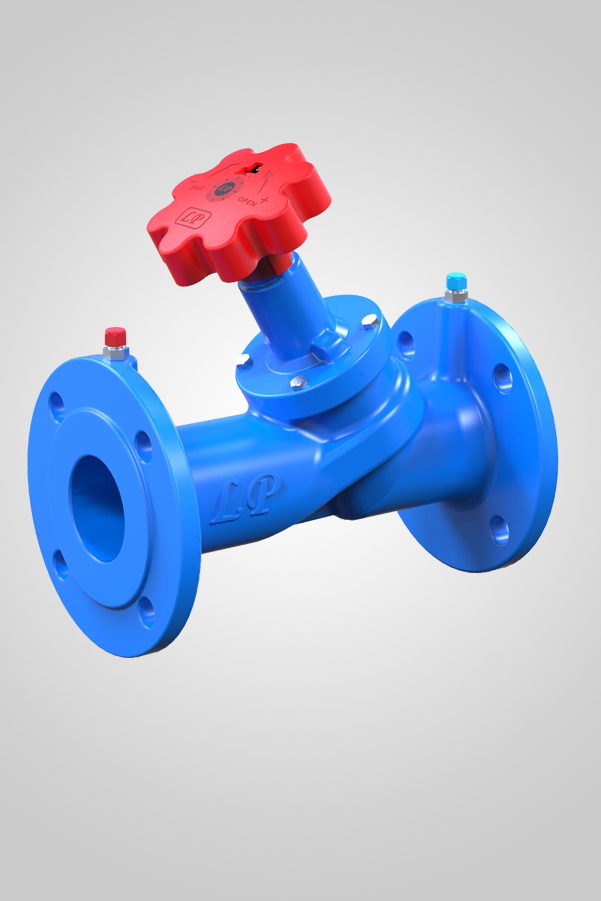

BALANCING VALVE DISCRIPTION
| Specifications | ||
| Ports: | Single | |
| Body Style: | Three Piece | |
| Size Range: | DN.15 - 100MM | |
| Temperature Range: | < 80 °C | |
| Pressure Ratings: | PN1.0, PN1.6 | |
| Steam Rating: | N/A | |
| End Connections: | Flanged | |
| Body Materials: | C.I/D.I/I.C/S.S | |
| Seat/Gasket Materials: | NBR-Rubber | |
Specification & Features::
Cast Iron Ball Valve, with SS Ball, Teflon
Seats & Seals, Inside Spindle Types Handle with PVC Sleeve.
Maximum Recomended Working Temperature=140ºc.
Applications :
Hobbing (Hot & Cold Water), Mining Industry, Construction Industry,
Water & effluent Treatment Plants, Fire Fighting, Heating &
Air Conditioning, Gas Supplies, Petroleum & Chemical Industry,
Sugar Industry, Solvent Plants, Distribution of oils, Boilers,
Hydraulic Machines & for Numerous Other Applications.
Design Standard IS:
IS-9890
Materials
Dimension Details
