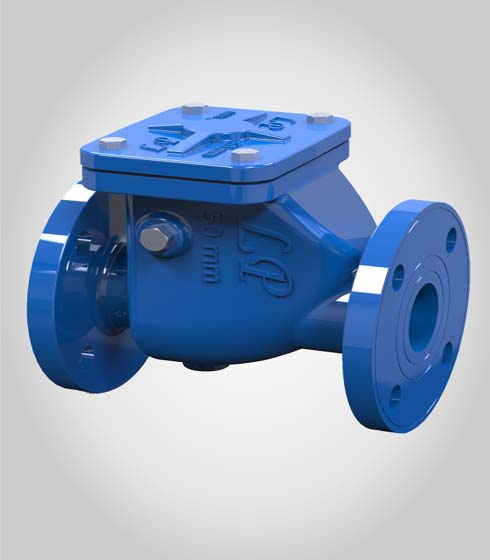

Reflux Valve Discription
| Specifications | ||
| Ports: | Single | |
| Body Style: | Non Return | |
| Size Range: | DN.50 - 600MM | |
| Temperature Range: | < 80 °C | |
| Pressure Ratings: | PN1.0, PN1.6 | |
| Steam Rating: | N/A | |
| End Connections: | Flanged | |
| Body Materials: | C.I/D.I | |
| Seat/Gasket Materials: | NBR-Rubber | |
Specification & Features::
Design Ref.: IS:5312.
Self operative swing type design.
Designed to allow maximum flow of water.
Bye pass arrangement can be provided.
Renewable seat with integrally moulded rubber liner.
Flanged ends Bolted Cover.
Renewable Seat with Rubber Flap.
Applications :
Suitable for Water & Oil.
Design Standard IS:
14846 PN1.0 &PN1.6.
Materials
Dimension Details
