Single Wafer Check Valve Discription
| Specifications | ||
| Ports: | Single | |
| Body Style: | Single Door | |
| Size Range: | DN.25 - 400MM | |
| Temperature Range: | < 80 °C | |
| Pressure Ratings: | PN1.0, PN1.6 | |
| Steam Rating: | N/A | |
| End Connections: | Flanged | |
| Body Materials: | S.S/M.S | |
| Seat/Gasket Materials: | NBR-Rubber | |
Specification & Features::
. Light Weight.
. Easily Installed.
. Bonded Resilient seat option.
. Extremely Compact.
. Tight Shut-Off.
. Radiography clear disc and
. Shaft is welded for best strength.
. Economical.
. One moving Part.
. Low maintenance.
. Interchangeable disc design.
Applications :
Wafer check Valve suitable for
Water and Oil.
Design Standard IS:
14846 PN1.0 &PN1.6.

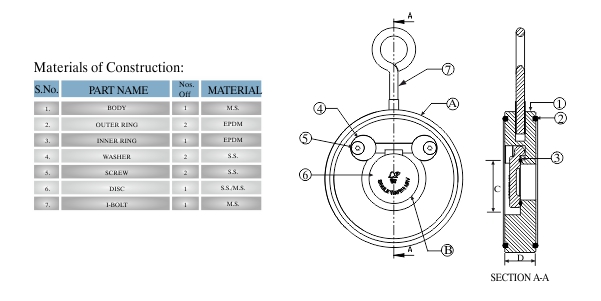

Materials

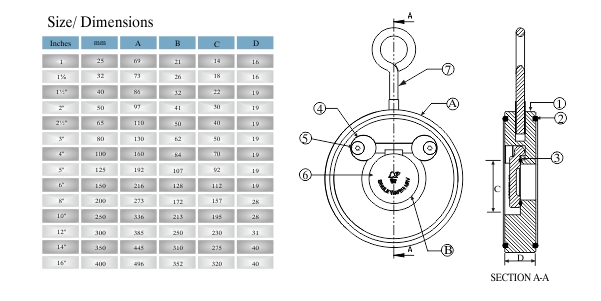

Dimension Details
