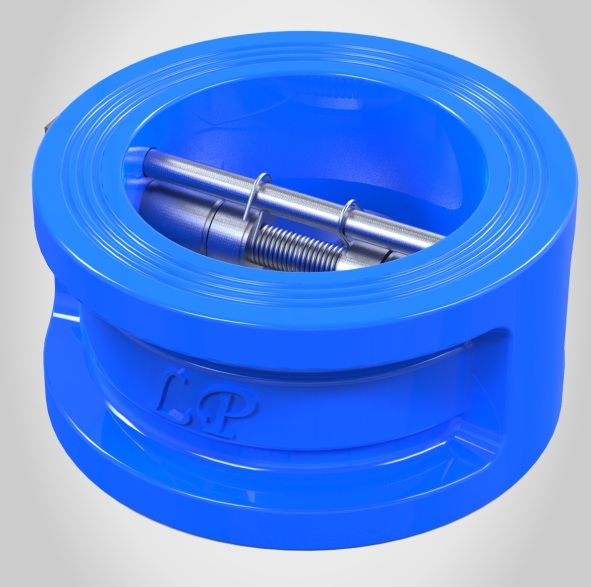

Dual Plate Check Valve Discription
| Specifications | ||
| Ports: | Single | |
| Body Style: | Double Door | |
| Size Range: | DN.40 - 400MM | |
| Temperature Range: | < 80 °C | |
| Pressure Ratings: | PN1.0, PN1.6 | |
| Steam Rating: | N/A | |
| End Connections: | Flanged | |
| Body Materials: | S.S/D.I/C.I | |
| Seat/Gasket Materials: | NBR-Rubber | |
Specifications & feature:
Rigid & Sturdy design with minimum loss of head across
the valve.Perfectly flat seating surfaces for good sealing.
Preventing entry of foreign body to pump through suction pipe.
Long service life.
Applications:
Water Supply System, Fire Water System, Cooling Water,
Chilled/Hot Water System, Boiler Feed Water,
Sea Water, Portable Water, Raw Water etc.
Design standard: :
IS-13095, BS-5155

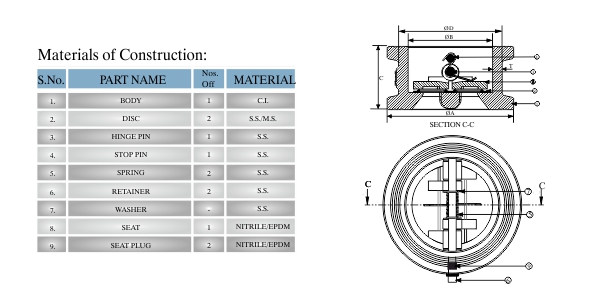

Materials

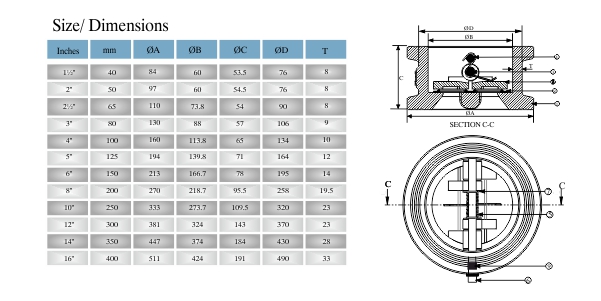

Dimension Details
