BFV Drip Model Discription
| Specifications | ||
| Ports: | Single | |
| Body Style: | Butterfly | |
| Size Range: | DN.25 - 600MM | |
| Temperature Range: | < 80 °C | |
| Pressure Ratings: | PN1.0, PN1.6 | |
| Steam Rating: | N/A | |
| End Connections: | Lugged | |
| Body Materials: | C.I/D.I | |
| Seat/Gasket Materials: | NBR-Rubber | |
Specification & Features::
Fine finish and smooth contours to minimize pressure
drop inside the strainer.
Large screening area makes the strainer extremely
efficient in performance.
Applications :
Paper & Pulp Industry, Waste & effluent Treatment Plants,
Water Treatment, Chemical & Sugar Industry, Fire fighting,
Drilling Rig, Heating & Air Conditioning, Cooling Water Circulation,
Compressed Air, Civil Constructions & numerous
other applications.
Design Standard:
IS-13095, BS-5155

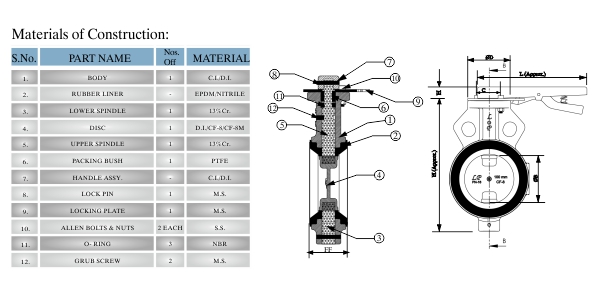

Materials
Dimension Details
